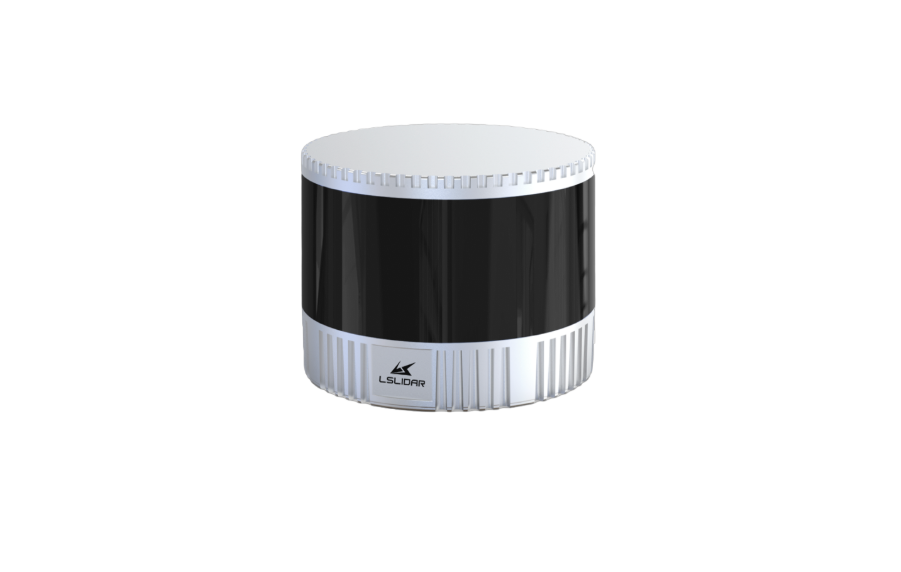

Leishen Intelligent C1 2D mechanical LiDAR

The LSLIDAR C1 is a compact single-channel, 360° mechanical LiDAR designed for precise near- to mid-range sensing. It achieves a detection range of up to 150 m (@70% reflectivity) with centimeter-level accuracy, making it highly suitable for robotics, intelligent transportation, security, and mapping applications. With a 905 nm Class 1 eye-safe laser, adjustable scan frequency, and a vertical field of view from −6° to +2°, the C1 delivers stable point cloud data for navigation, obstacle avoidance, and perception tasks.

Engineered for efficiency and reliability, the C1 operates on 9–32 VDC with low power consumption and communicates over 100 Base-TX Ethernet using standard UDP data output. It supports GPS PPS and gPTP synchronization for precise timestamping, enabling seamless integration with multi-sensor systems. Its robust IP67-rated housing, wide operating temperature range (−20 °C to +60 °C), and compact size make it easy to deploy in diverse environments and platforms.

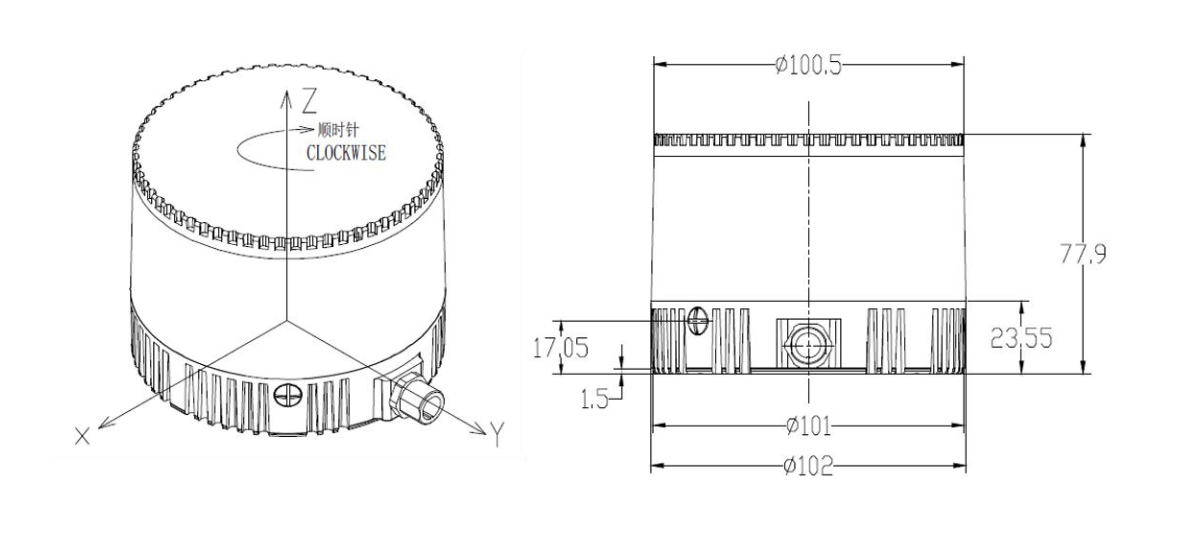

The C1 is available in two connector layouts: bottom connector or side connector. These are purely physical mounting options and do not affect sensor performance. Customers must specify the connector version at the time of order to ensure compatibility with their installation needs. Standard accessories include adapter cables for power, Ethernet, and GPS timing, with optional extension cables, interface boxes, and sync boards available for multi-sensor setups. The C1 operates safely under Class I laser standards and is backed by a 12-month warranty.
