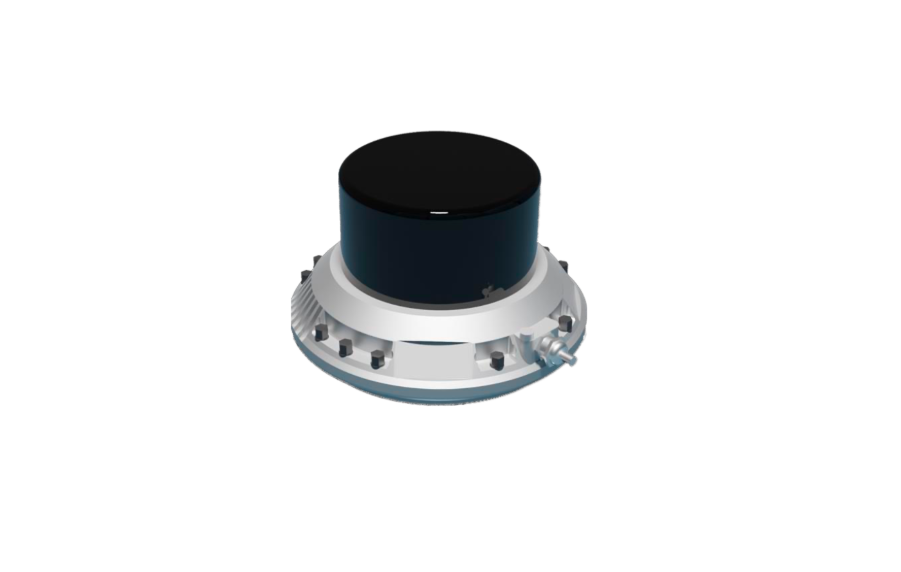

Leishen Intelligent ZWLD-01 explosion-proof 360° LiDAR

New listing!

Click image to open expanded view.

Leishen Intelligent ZWLD-01

2 990 USD

+ Shipping and import fees, where applicable

2990 USD / MIN. QUANTITY PURCHASE

Get it Sep 12 - Sep 19

ZWLD-01 is a 16-beam, explosion-proof 360° LiDAR built for hazardous areas and continuous outdoor duty. It uses a 905 nm Class 1 eye-safe laser and Time-of-Flight ranging to deliver ±3 cm accuracy from 70 m up to 200 m, with 320k pts/s in single-echo or 640k pts/s in dual-echo. A −15° to +15° vertical field with uniform 2° channel spacing captures rich geometry while the horizontal angular resolution adapts with motor speed: 0.09° at 5 Hz, 0.18° at 10 Hz, or 0.36° at 20 Hz. The enclosure is rated Ex d IIC T6 Gb and IP67 for dust and water ingress protection.

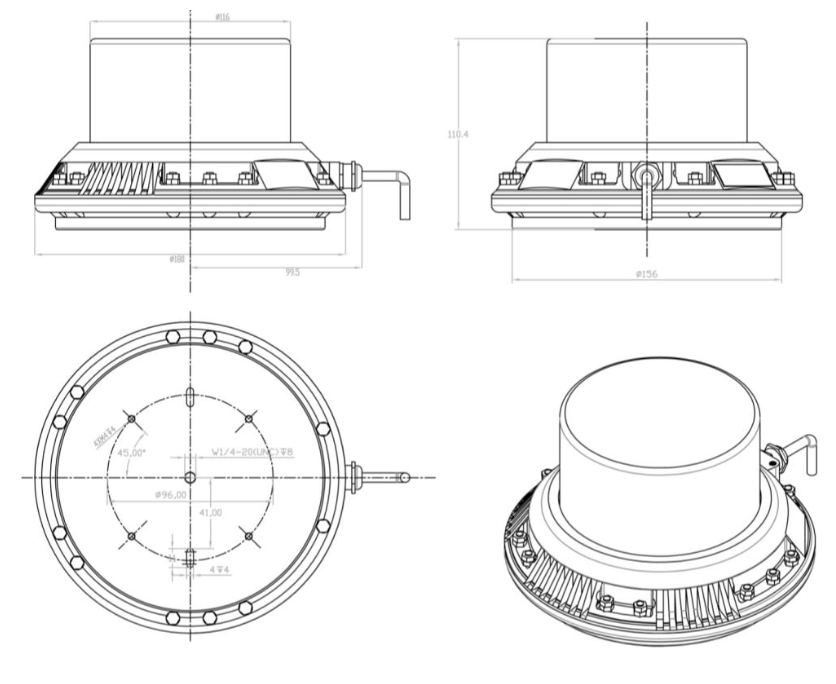

Integration is straightforward: 9–32 V DC power, Fast-Ethernet UDP/IP data, PPS/GPS for time sync, and optional PTP/gPTP. Default network settings ship preconfigured, and Leishen’s Windows point-cloud client or ROS driver provide quick bring-up, visualization, and parameter access. Dimensions are Ø 180 mm × 110.4 mm; shock and vibration robustness meet 500 m/s², 11 ms and 5–2000 Hz, 3 G rms, respectively.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: LeiShen Intelligent System Co., Ltd.
Dimensions per unit:: 13 cm × 5 cm × 24 cm
Weight per unit:: 2 kg
Length of handling process:: 14 days
Shipping package includes:: LiDAR, instructions (English)
Condition:: New
End-use certification needed:: Yes

Product configurations & prices

Item	Product type	Subtotal
1	ZWLD-01 – B type operating temperature (−20 °C to +60 °C) – Transistor–Transistor Logic level GPS input	2.990
2	ZWLD-01 – B type operating temperature (−20 °C to +60 °C) – Recommended Standard 232 level GPS input	2.990
3	ZWLD-01 – D type operating temperature (−40 °C to +60 °C) – Transistor–Transistor Logic level GPS input	2.990
4	ZWLD-01 – D type operating temperature (−40 °C to +60 °C) – Recommended Standard 232 level GPS input	2.990
