Leishen Intelligent LS360S4-500 and 1000 Hybrid Solid-State LiDAR

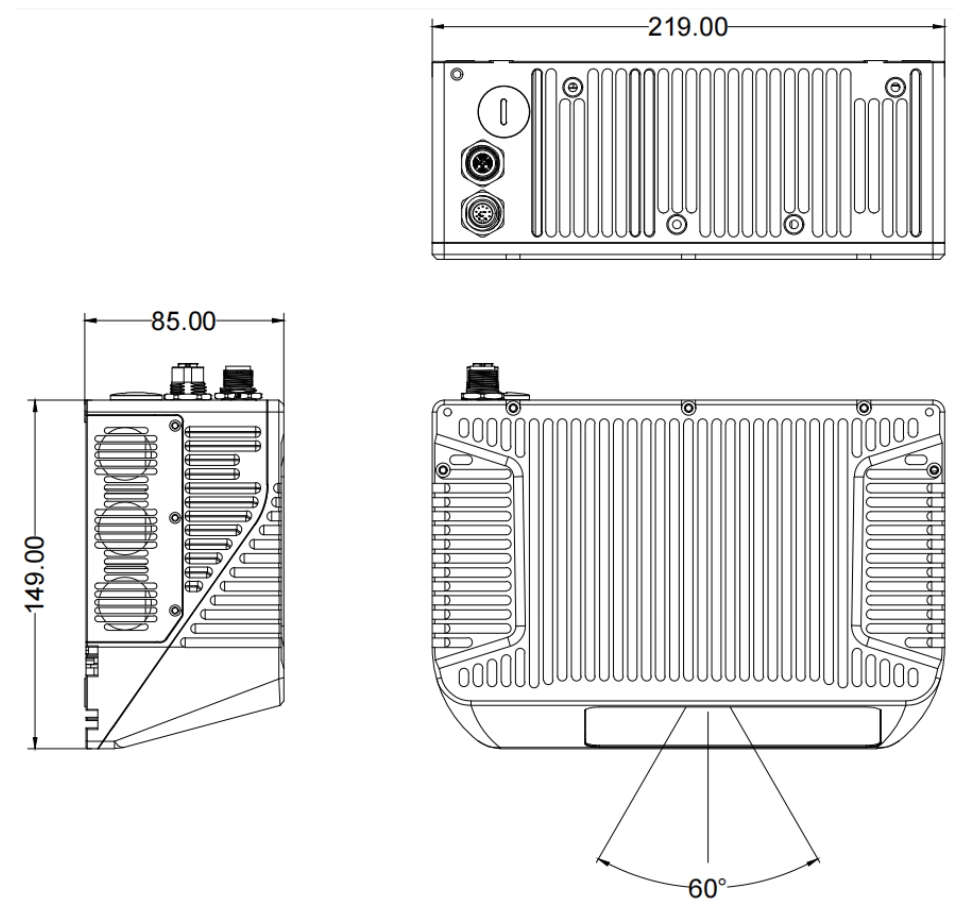

LS360S4 is a long-range, eye-safe Time-of-Flight LiDAR operating at 1550 nm for industrial and infrastructure sensing. It measures up to 1,500 m with ±5 cm accuracy at 10 FPS and a 60° horizontal field of view, in a compact IP67 housing (219×149×85 mm, ~3 kg). Two mechanical layouts are offered: LS360S4-A with 28.5° vertical FOV and LS360S4-B with 27.5° vertical FOV. Operating range is −20 °C to +65 °C with <75 W power at 12–30 V DC.

High-density point clouds reach up to 6,000,000 pts/s (mode-dependent). Horizontal angular resolution is as fine as 0.036°, with alternatives 0.065° and 0.13° associated to range operating modes. Communication is via Gigabit Ethernet with MSOP/DIFOP/UCWP UDP protocols; time can be synchronized by GPS/PPS or IEEE 1588 PTP/gPTP. Single- or dual-echo reporting is supported, and detailed timestamps (UTC or Unix + nanoseconds) are embedded for precise fusion.

Configurations and accessories: factory options include LS360S4-A or LS360S4-B, maximum ranging distance (500 m / 1,000 m), and GPS interface level (TTL or RS232).
