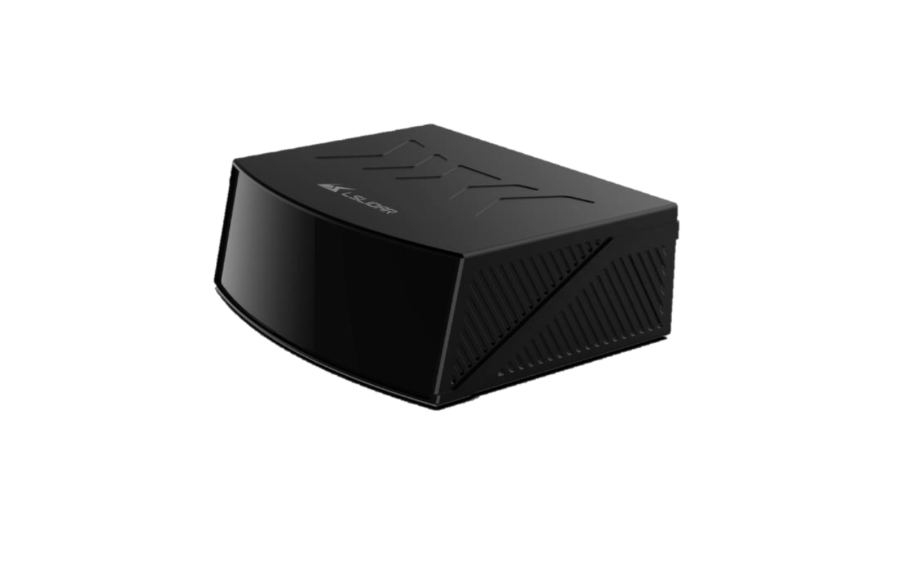

Leishen Intelligent CX128S2

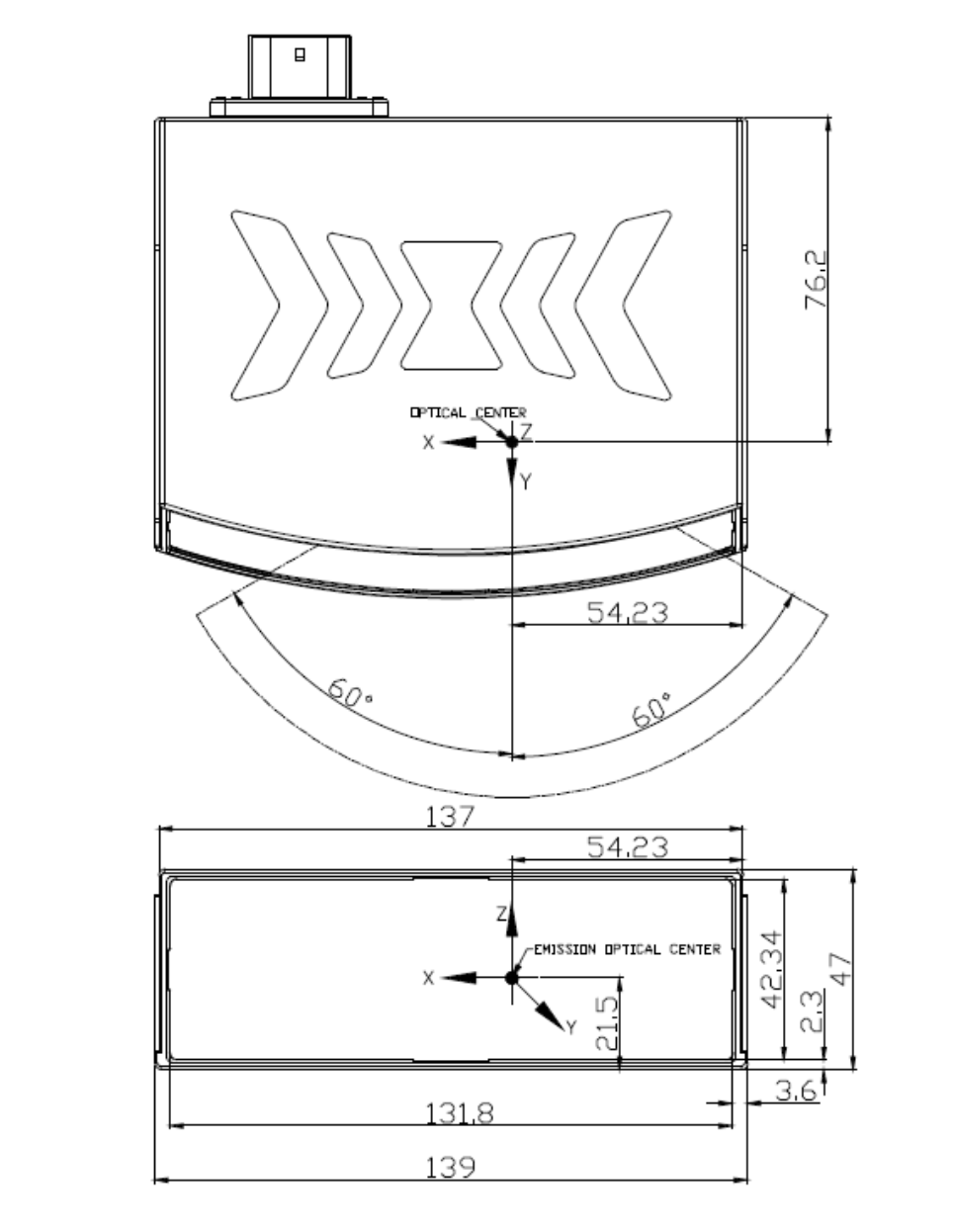

CX128S2 is a hybrid solid‑state, 128‑channel automotive‑grade lidar designed for long‑range perception in compact roof or fascia integrations. It uses a 905 nm Time‑of‑Flight transmitter with Class 1 eye safety and delivers up to 1.53 million points per second in single‑echo mode, enabling reliable object detection at up to 200 m on 10% reflectivity targets. The unit measures 139 × 112.78 × 47 mm and weighs ≤ 935 g, suiting sleek exterior styling needs.
Performance highlights include a 25° vertical field of view (−12.5° to +12.5°) and 120° horizontal field of view with angular resolutions of 0.125° in region‑of‑interest and 0.25° non‑ROI vertically; horizontal resolution ties to scan rate: 0.05° at 5 Hz, 0.1° at 10 Hz, and 0.2° at 20 Hz. Networking is Automotive Ethernet 1000BASE‑T1 with UDP MSOP/DIFOP streams; time sources include pulse‑per‑second from Global Positioning System and generalized Precision Time Protocol. Power input is 9–32 V DC (~15 W). Operating temperature spans −40 °C to +85 °C with IP 6K9K protection and automotive shock/vibration ratings.
