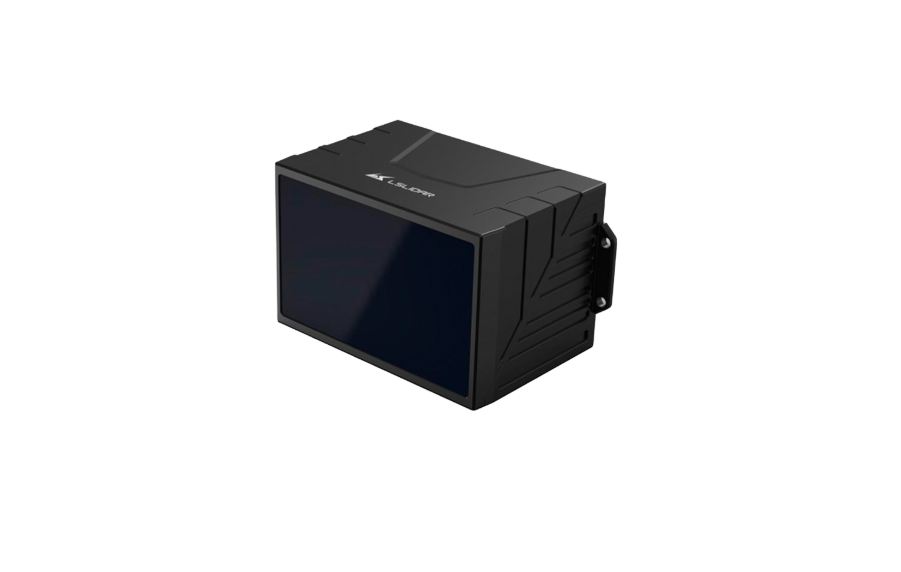

Leishen Intelligent CH256X1

JUST UPDATED

Click image to open expanded view.

Leishen Intelligent CX128S2

4 340 USD

+ Shipping and import fees, where applicable

4340 USD / MIN. QUANTITY PURCHASE

Get it Dec 24 - Dec 31

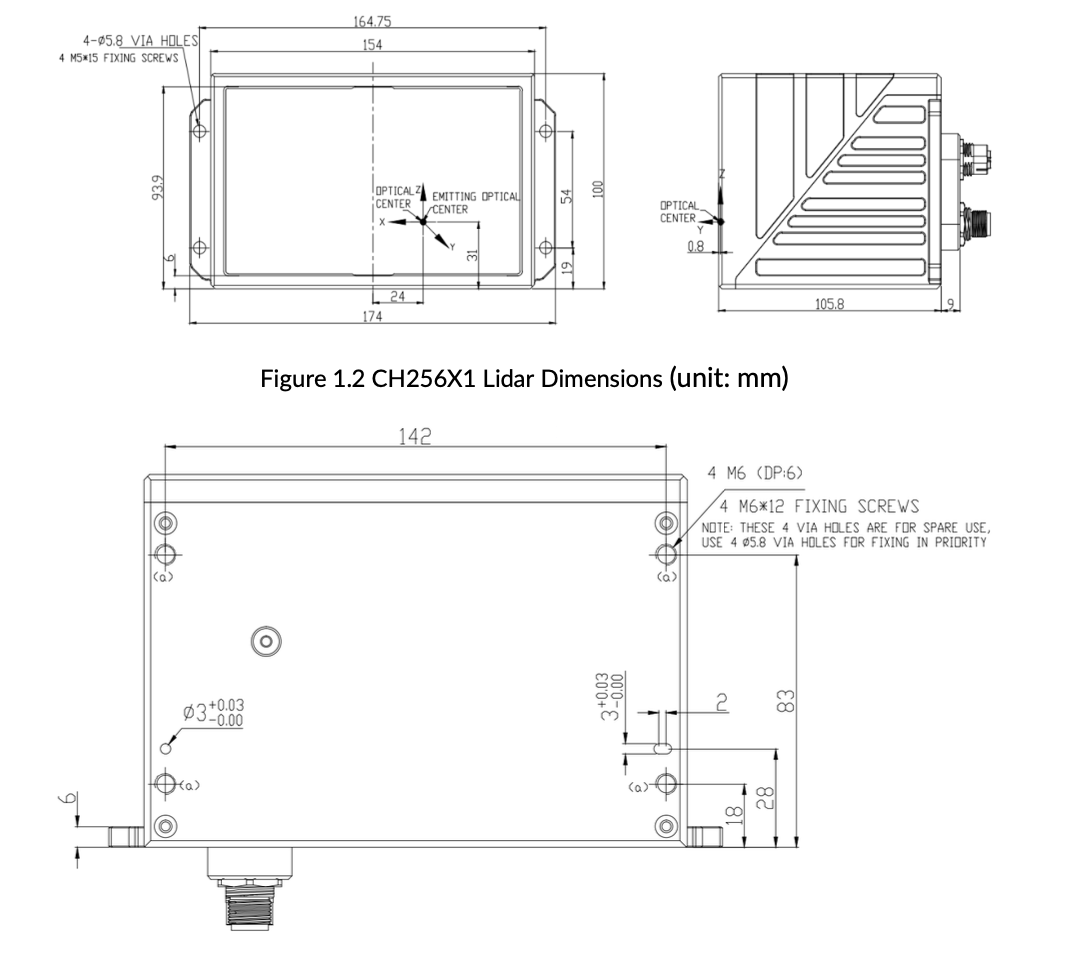

CH256X1 is a hybrid solid‑state 256‑channel LiDAR built for harsh, high‑shock environments. It delivers up to ±3 cm accuracy with a 120° (horizontal) × 40° (vertical) field of view, Class 1 eye‑safe 905 nm lasers, and IP67 protection in a compact ≤ 2 kg housing (154 × 105.8 × 100 mm). Two factory ranges are offered: 200 m at 10% reflectivity and 450 m at 70% reflectivity. Operating temperature is −40 °C to +55 °C, with shock 500 m/s² (11 ms) and vibration 5–2000 Hz, 3 G rms.

Data streaming uses Gigabit Industrial Ethernet (1000 Base‑TX) with MSOP/DIFOP protocols, and precise timing via gPTP (GPS timing also supported). Default scanning is 10 Hz or 20 Hz; horizontal angular resolution is 0.1°/0.2° on the 200 m model and 0.25°/0.5° on the 450 m model; vertical angular resolution is 0.156°. Power input is 9–36 V DC (24 V recommended).

Min. order quantity:
1
Manufacturer:
LeiShen Intelligent System Co., Ltd.
Dimensions per unit:
11 cm × 10 cm × 16 cm
Weight per unit:
2 kg
Length of handling process:
30 days
Shipping package includes:
LiDAR unit, manual (English)
Condition:
New
END-USE CERTIFICATION NEEDED:
No
Seller:
GEHT International Ltd
Company website:
https://gehtinternational.com
Shipping from:
Hong Kong, China
Delivery terms:
EXW

Product configurations & prices

Item Product code (SKU) Product type SubtotalMin. order quantity
1CH256X1‑R‑1.0‑200‑A — Factory range 200 m at ten‑percent reflectivity; 256 channels; Class 1 905 nm; 120° × 40° FOV; ±3 cm accuracy; Gigabit Industrial Ethernet; gPTP time source.4.340
2CH256X1‑R‑1.0‑450‑A — Factory range 450 m at seventy‑percent reflectivity; 256 channels; Class 1 905 nm; 120° × 40° FOV; ±3 cm accuracy; Gigabit Industrial Ethernet; gPTP time source4.340
Item:
Product code (SKU):
Product type:
Net sum:
Quantity:
1

CH256X1‑R‑1.0‑200‑A — Factory range 200 m at ten‑percent reflectivity; 256 channels; Class 1 905 nm; 120° × 40° FOV; ±3 cm accuracy; Gigabit Industrial Ethernet; gPTP time source.
4.340 USD
Item:
Product code (SKU):
Product type:
Net sum:
Quantity:
2

CH256X1‑R‑1.0‑450‑A — Factory range 450 m at seventy‑percent reflectivity; 256 channels; Class 1 905 nm; 120° × 40° FOV; ±3 cm accuracy; Gigabit Industrial Ethernet; gPTP time source
4.340 USD
