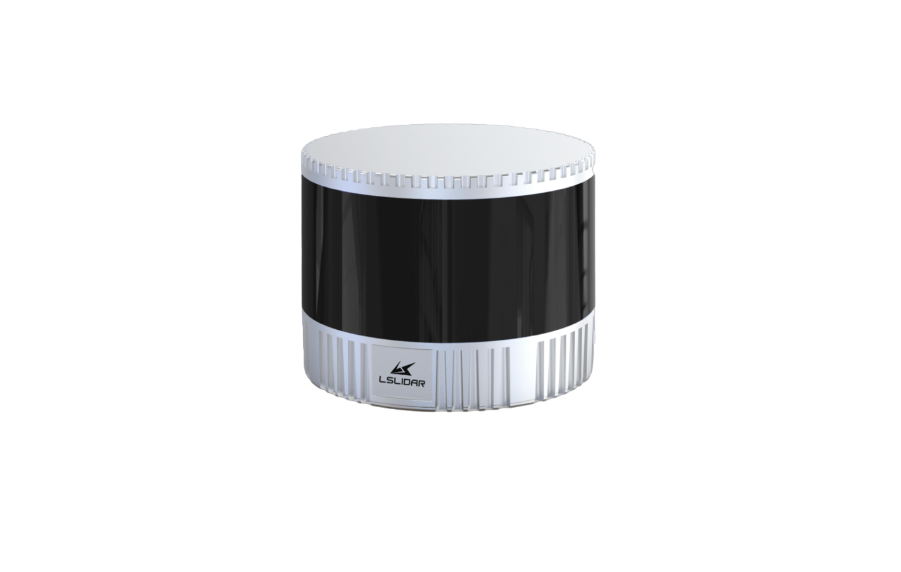

Leishen Intelligent C16 3D mechanical LiDAR

The LSLIDAR C16 is a high-resolution, 16-channel, 360° mechanical LiDAR built for demanding perception tasks. It achieves a detection range of up to 150 m (@70% reflectivity) with ±3 cm accuracy, delivering dense point clouds with up to 320,000 pts/s in dual-echo mode. With a vertical field of view of −15° to +15° and selectable rotation frequencies from 5 to 20 Hz, the C16 ensures reliable 3D sensing for autonomous vehicles, robotics, mapping, and smart infrastructure applications.

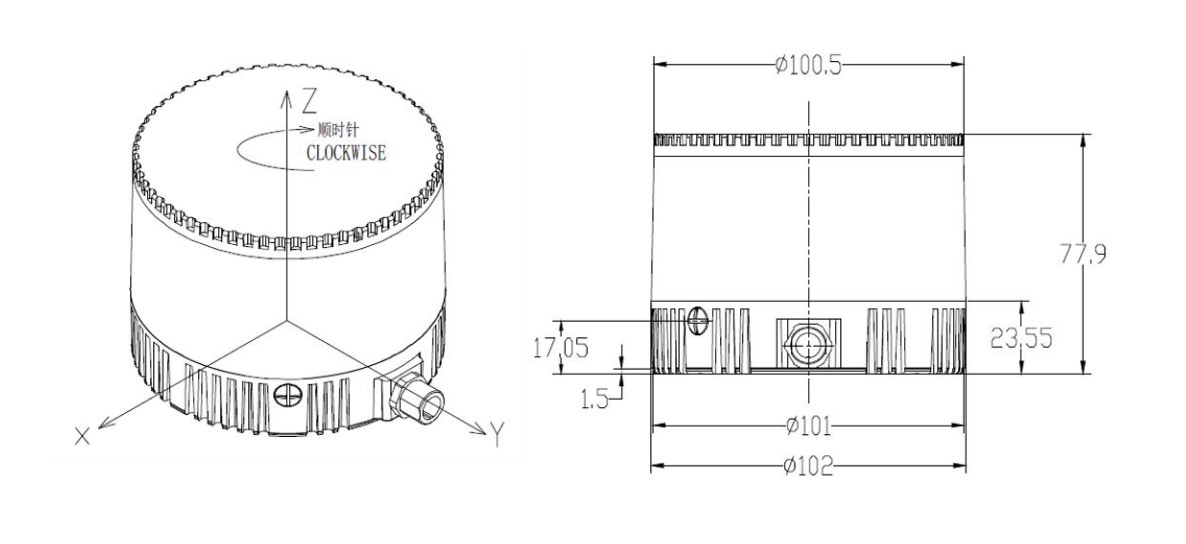

Designed for robust integration, the C16 communicates via 100 Base-TX Ethernet and supports standard UDP packet formats for seamless data transmission. Synchronization is available through GPS PPS, external PPS, or gPTP, ensuring precise timestamping for multi-sensor fusion. The unit operates on 9–32 VDC with typical 10 W consumption, and its compact form factor (Ø102 mm × 87.5 mm, 1160 g) combined with an IP67 housing provides durability in harsh outdoor environments across −20 °C to +60 °C.

The C16 is offered in two connector layouts: bottom connector or side connector. These options are purely mechanical and do not affect sensor performance, but the choice must be specified at the time of order to suit installation requirements. Standard accessories include adapter cables with power, Ethernet, and GPS timing ports, while optional accessories include extension cables, an interface box for testing, and sync boards for multi-LiDAR configurations. The C16 operates safely under Class I laser standards and is backed by a 12-month warranty.
