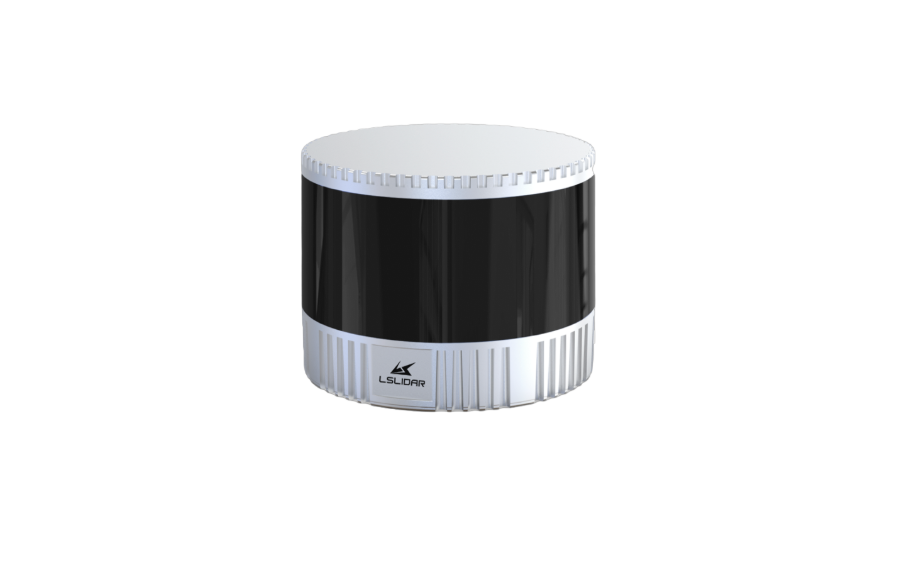

Leishen Intelligent C1 2D mechanical LiDAR

The C1 is a compact 2D mechanical LiDAR sensor that utilizes time-of-flight (ToF) technology to perform high-speed 360-degree horizontal scanning of its environment. With a single laser channel, it achieves a detection range of up to 150 meters at 70% reflectivity and maintains a measurement accuracy of ±3 centimeters. This makes it highly suitable for applications that demand precise positioning and obstacle avoidance, such as indoor service robots, automated guided vehicles (AGVs), and unmanned aerial vehicles (UAVs).

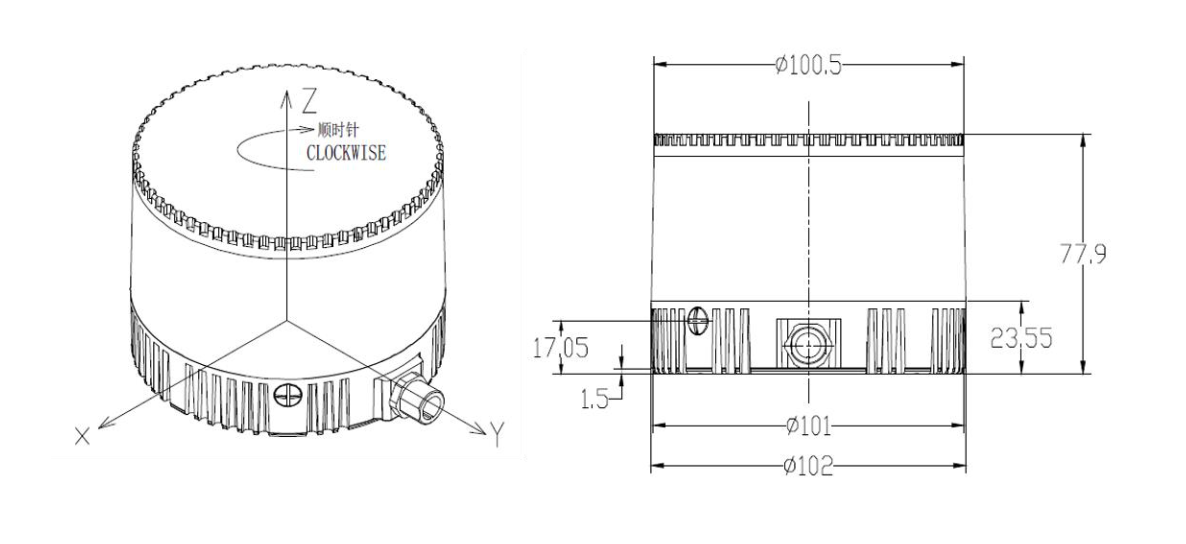

The device offers real-time scanning at adjustable frequencies up to 20 Hz and supports single and dual-echo modes, providing a maximum of 40,000 points per second. Engineered for robustness and integration flexibility, the C1 is rated IP67 for water and dust resistance, supports a wide operating temperature range from –20°C to +60°C, and includes Ethernet and PPS interfaces for seamless system synchronization. Weighing approximately 1,050 grams and measuring 102 millimeters in diameter by 77.9 millimeters in height, it is designed for efficient deployment in space-constrained or mobile platforms. The C1 operates safely under Class I laser standards and is backed by a 12-month warranty.

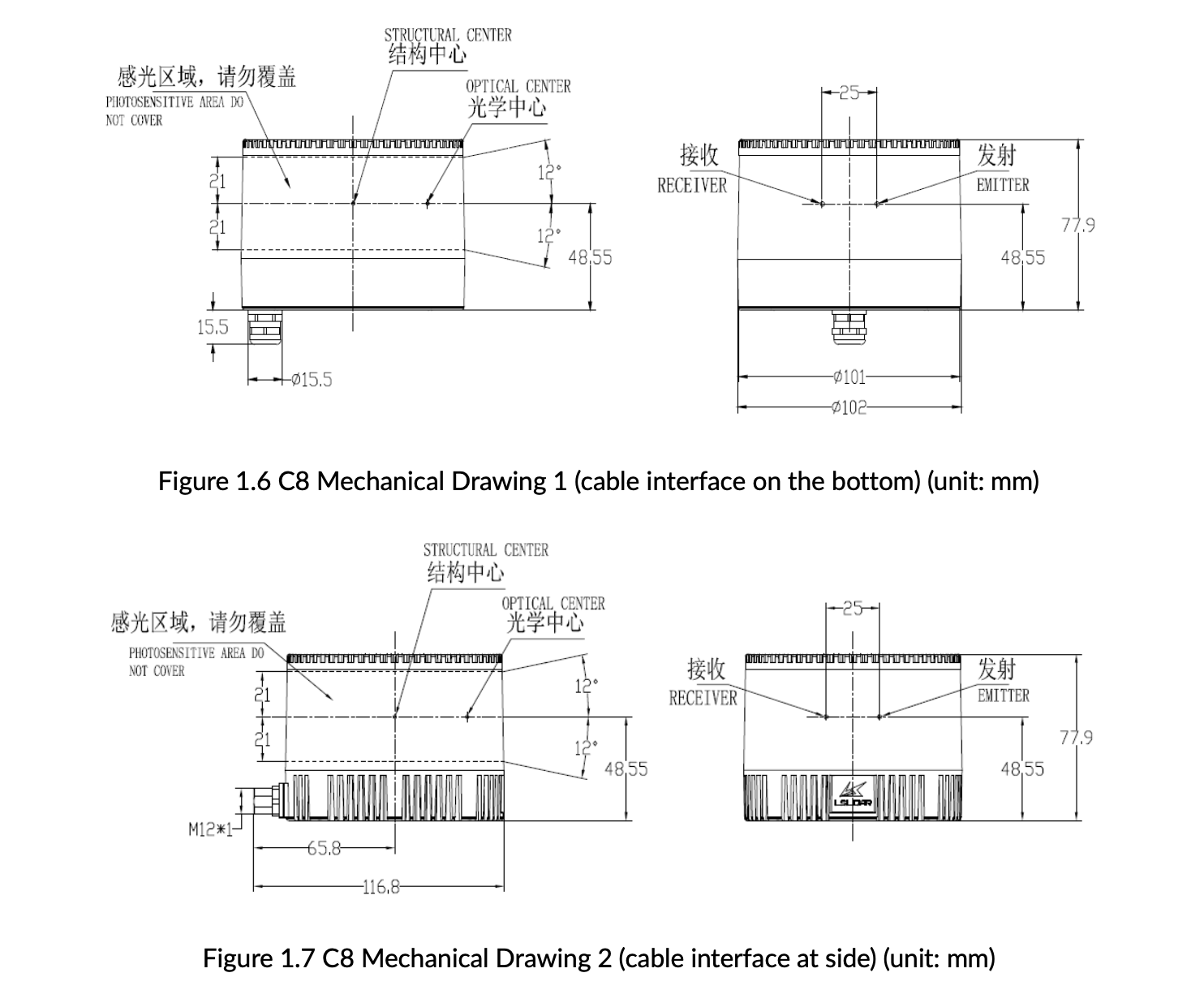

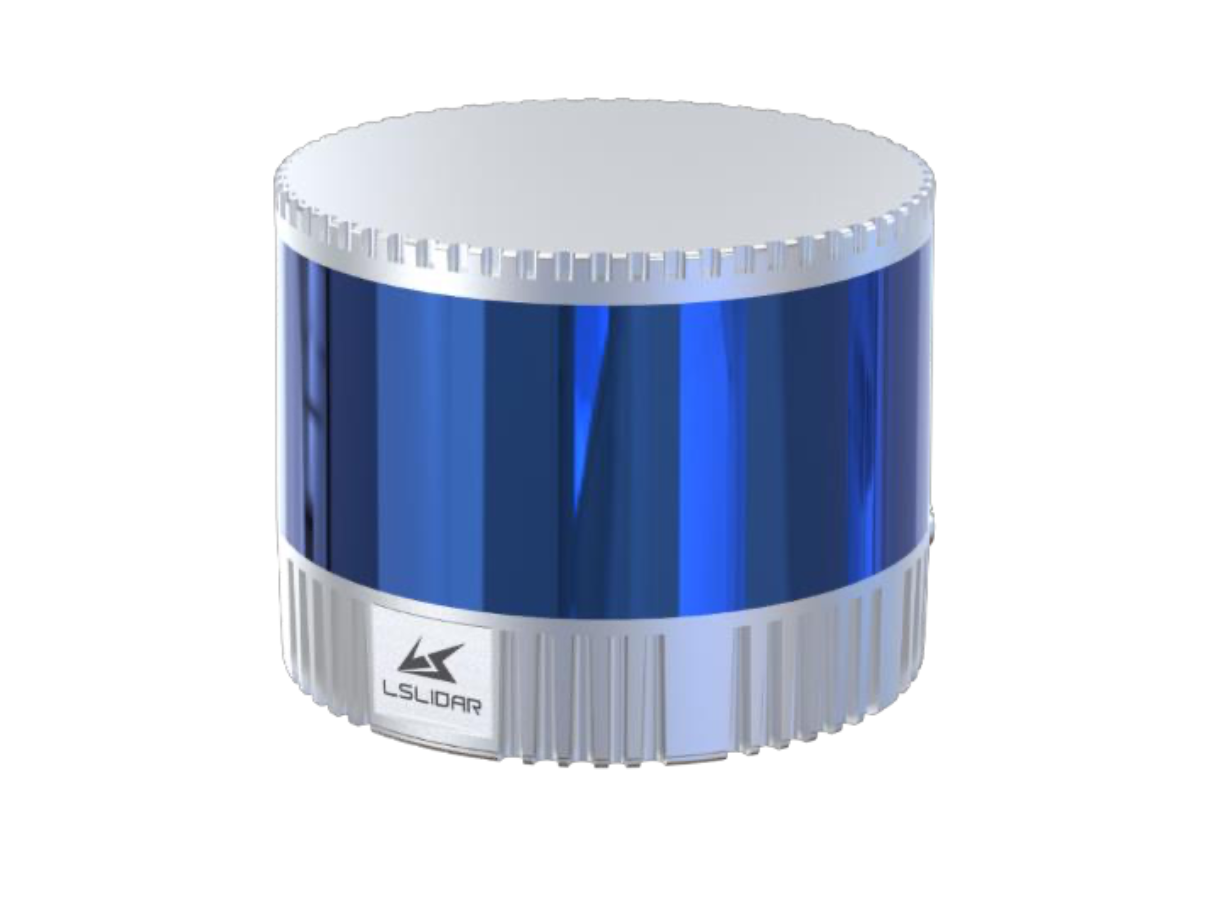

The C8 2D mechanical LiDAR employs a time-of-flight measurement mechanism to conduct a high-speed 360° scan of its surroundings. It has 8 channels, a detection range of up to 120 meters (70%), FOV vertical 24° (-12° - +12°) and maintains an accuracy of ±3 cm. This LiDAR is primarily utilised in applications that demand precise positioning and obstacle avoidance, such as indoor service robots, Automated Guided Vehicles (AGVs), and Unmanned Aerial Vehicles (UAVs). Communication interface Ethernet/PPS, safety level: Class I (eye-safe), weight: 1050 g, IP67, size: Φ102 mm * 78 mm, warranty 12 months.

The C16 2D mechanical LiDAR employs a time-of-flight measurement mechanism to conduct a high-speed 360° scan of its surroundings. It has 16 channels, a detection range of up to 150 meters (70%), FOV vertical 30° (-16° - +14°) and maintains an accuracy of ±3 cm. This LiDAR is primarily utilised in applications that demand precise positioning and obstacle avoidance, such as indoor service robots, Automated Guided Vehicles (AGVs), and Unmanned Aerial Vehicles (UAVs). Communication interface Ethernet/PPS, safety level: Class I (eye-safe), weight: 1050 g, IP67, size: Φ102 mm * 78 mm, warranty 12 months.

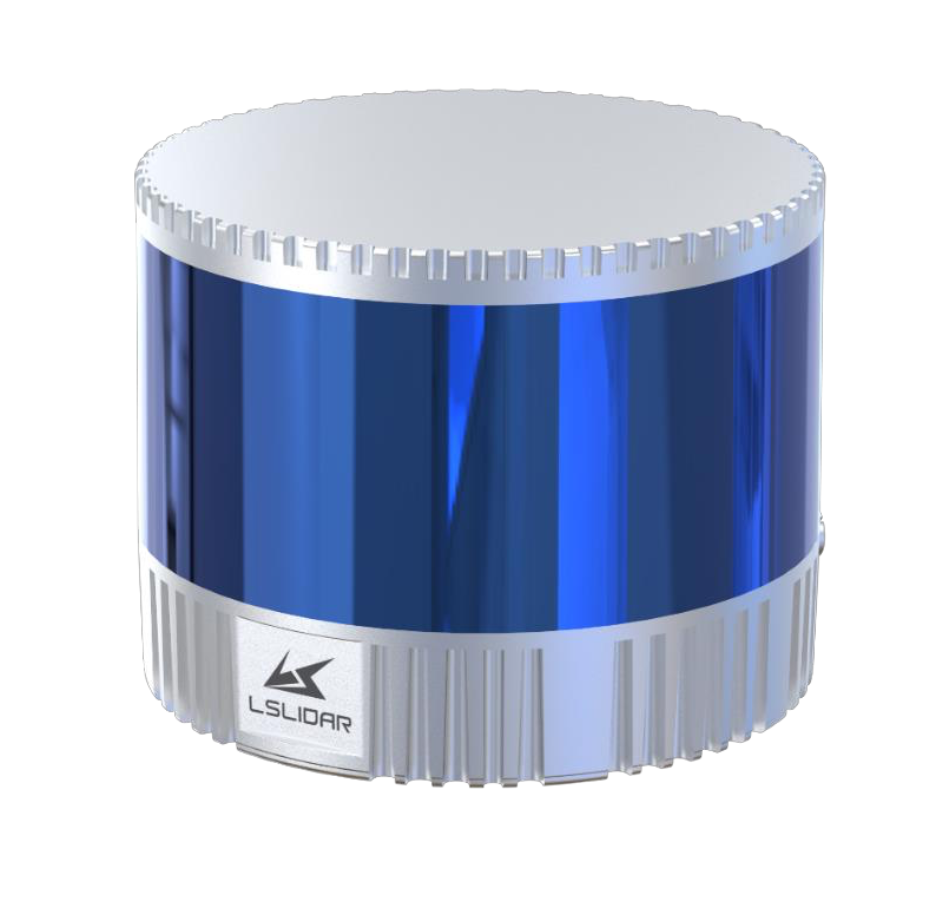

The C32 2D mechanical LiDAR employs a time-of-flight measurement mechanism to conduct a high-speed 360° scan of its surroundings. It has 32 channels, a detection range of up to 150 meters (70%), FOV vertical 31° (-16° - +15°) and maintains an accuracy of ±3 cm. This LiDAR is primarily utilised in applications that demand precise positioning and obstacle avoidance, such as indoor service robots, Automated Guided Vehicles (AGVs), and Unmanned Aerial Vehicles (UAVs). Communication interface Ethernet/PPS, safety level: Class I (eye-safe), weight: 1050 g, IP67, size: Φ102 mm * 78 mm, warranty 12 months.
