TSS65XZ-series – Cross-roller XZ-stage 65×65 mm platform, ±12.5 mm travel

Click image to open expanded view.

TSS65XZ-1

465 USD

+ Shipping and import fees, where applicable

465 USD / MIN. QUANTITY PURCHASE

Get it Nov 14 - Nov 21

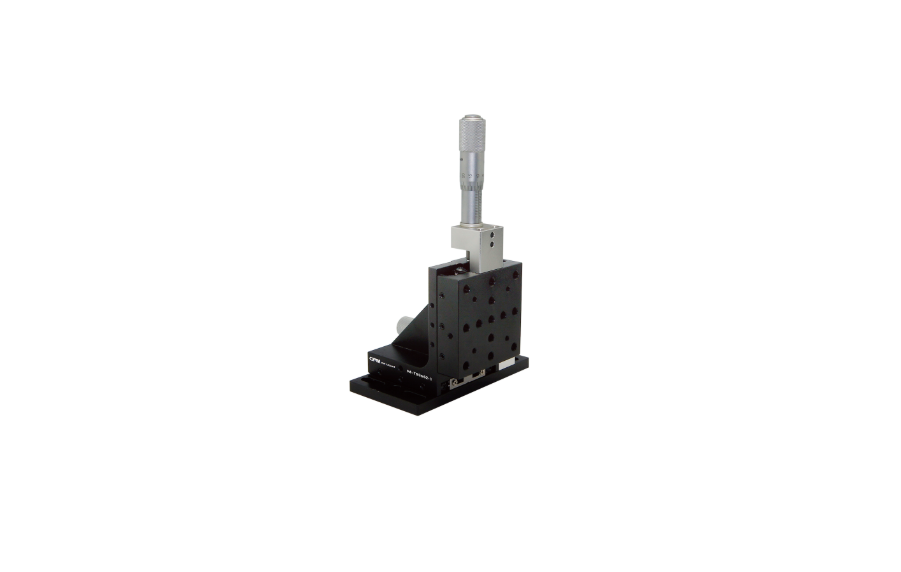

The TSS65XZ-1 provides orthogonal X and Z motion (horizontal + vertical) in one compact crossed-roller stage. It has ±12.5 mm travel, and maintains ±7.5 µm straightness with minimal friction. Ideal for 2D vertical/horizontal alignment in compact optics or inspection setups.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 1 kg
Length of handling process:: 7 days
Shipping package includes:: XZ stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product number	Product type	Subtotal	Min. order quantity
1	TSS65XZ-1	Platform size 65 mm x 65 mm, actuators: micrometer, axes of travel: X and Z, travel: ±12.5 mm, straightness: ±7.5 µm, resolution: 10 µm	465

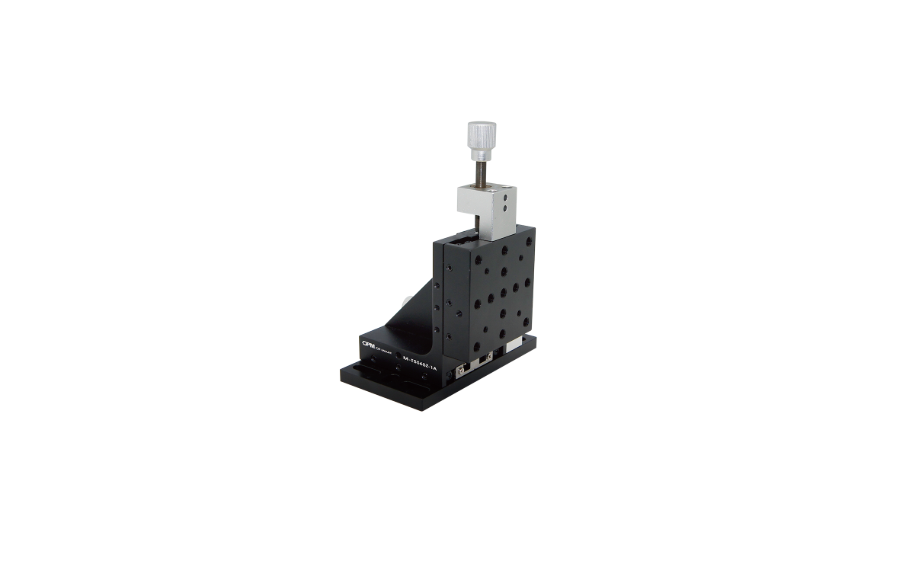

2	TSS65XZ-1A	Platform size 65 mm x 65 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±12.5 mm, straightness: ±7.5 µm, resolution: na	545
