TCB25XY-03 – Miniature linear XY-stage, 25×25 mm platform, ±6.5 mm travel

Click image to open expanded view.

TCB25XY-03

330 USD

+ Shipping and import fees, where applicable

330 USD / MIN. QUANTITY PURCHASE

Get it Jan 23 - Jan 30

Ultra-compact 25×25 mm platform XY-stage, 0.5″ (±6.5 mm) travel, crossed-roller bearings. Micrometer or adjustment screw drive.

Applications: dual-axis optical fiber or laser alignment.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 0,15 kg
Length of handling process:: 7 days
Shipping package includes:: 3-axis XYZ stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product code (SKU)	Product type	Subtotal	Min. order quantity

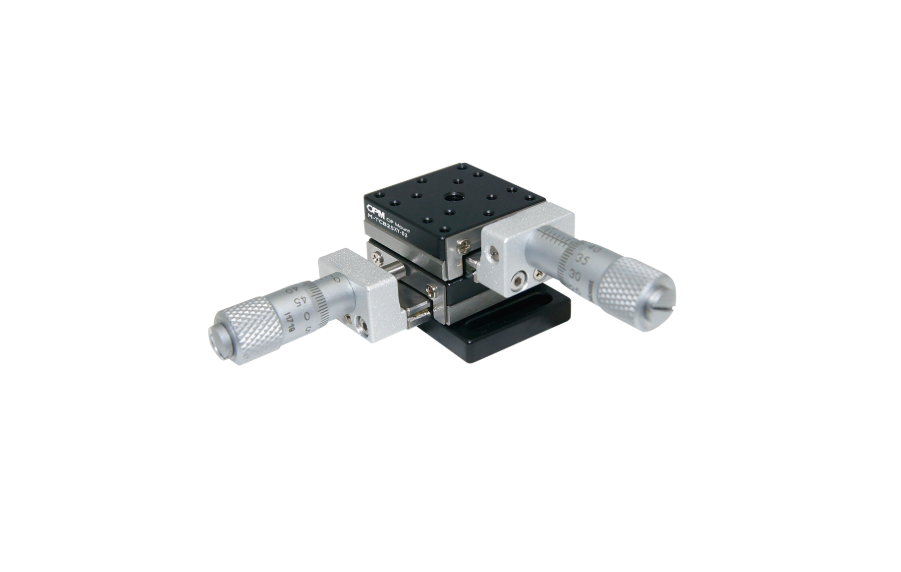

1	TCB25XY-03	Platform size 25 mm x 25 mm, actuators: micrometer, axes of travel: XY, travel: ± 3.5 mm, straightness: ± 15 mm, resolution: 10 µm.	330

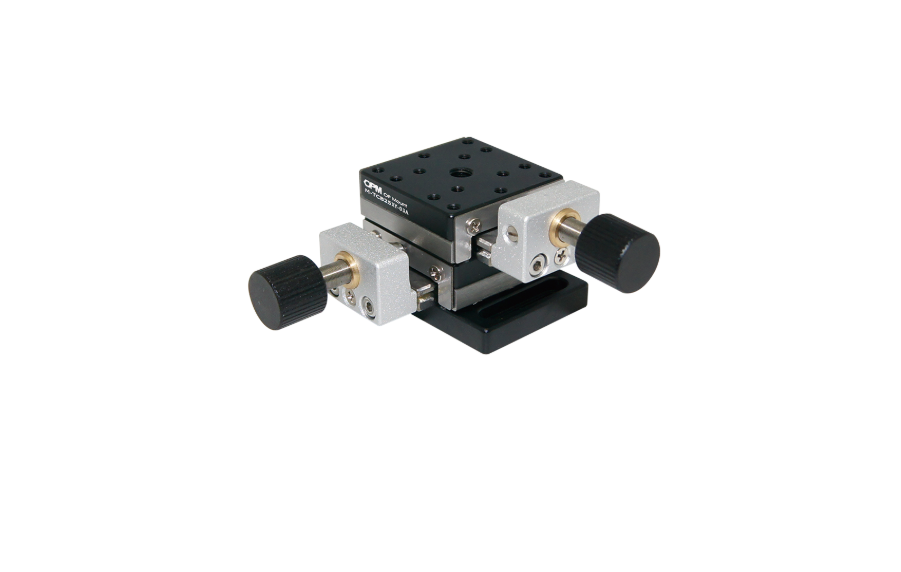

2	TCB25XY-03A	Platform size 25 mm x 25 mm, actuators: adjustment screw (100TPI), axes of travel: XY, travel: ± 3.5 mm, straightness: ± 15 mm, resolution: NA.	305

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCB25XY-03

Platform size 25 mm x 25 mm, actuators: micrometer, axes of travel: XY, travel: ± 3.5 mm, straightness: ± 15 mm, resolution: 10 µm.

330 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCB25XY-03A

Platform size 25 mm x 25 mm, actuators: adjustment screw (100TPI), axes of travel: XY, travel: ± 3.5 mm, straightness: ± 15 mm, resolution: NA.

305 USD
