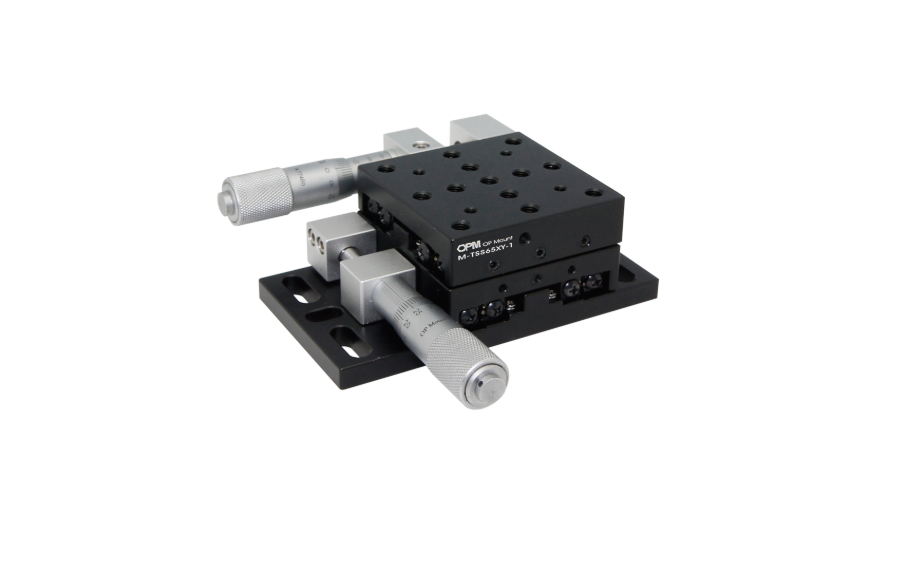

TSS65XY-series – Cross-roller XY-stage 65×65 mm platform, ±12.5 mm travel

Click image to open expanded view.

TSS65XY-1

465 USD

+ Shipping and import fees, where applicable

465 USD / MIN. QUANTITY PURCHASE

Get it Feb 26 - Mar 5

The TSS65XY-1 is a 2-axis crossed-roller stage combining two side-drive axes (X and Y), each with ±12.5 mm travel and micrometer drives (10 µm resolution). Cross-roller bearings provide smooth, backlash-reduced motion with high rigidity. Suited to compact XY alignment, scanning and multi-axis positioning tasks.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 0,9 kg
Length of handling process:: 7 days
Shipping package includes:: XY stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product code (SKU)	Product type	Subtotal	Quantity
1	TSS65XY-1	Platform size 65 mm x 65 mm, actuators: micrometer, axes of travel: X and Y, travel: ±12.5 mm, straightness: ±7.5 µm, resolution: 10 µm	465 USD
2	TSS65XY-1A	Platform size 65 mm x 65 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±12.5 mm, straightness: ±7.5 µm, resolution: na	420 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TSS65XY-1

Platform size 65 mm x 65 mm, actuators: micrometer, axes of travel: X and Y, travel: ±12.5 mm, straightness: ±7.5 µm, resolution: 10 µm

465 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

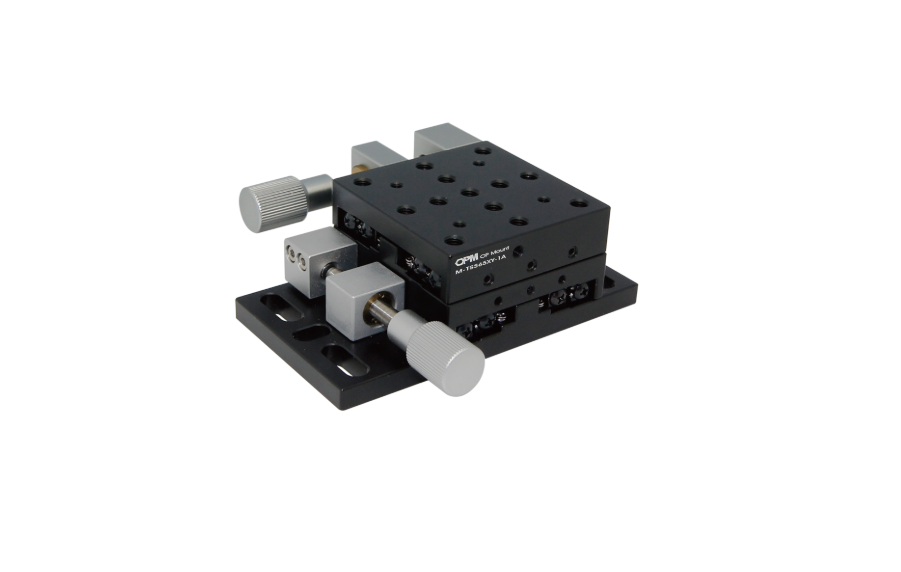

TSS65XY-1A

Platform size 65 mm x 65 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±12.5 mm, straightness: ±7.5 µm, resolution: na

420 USD
