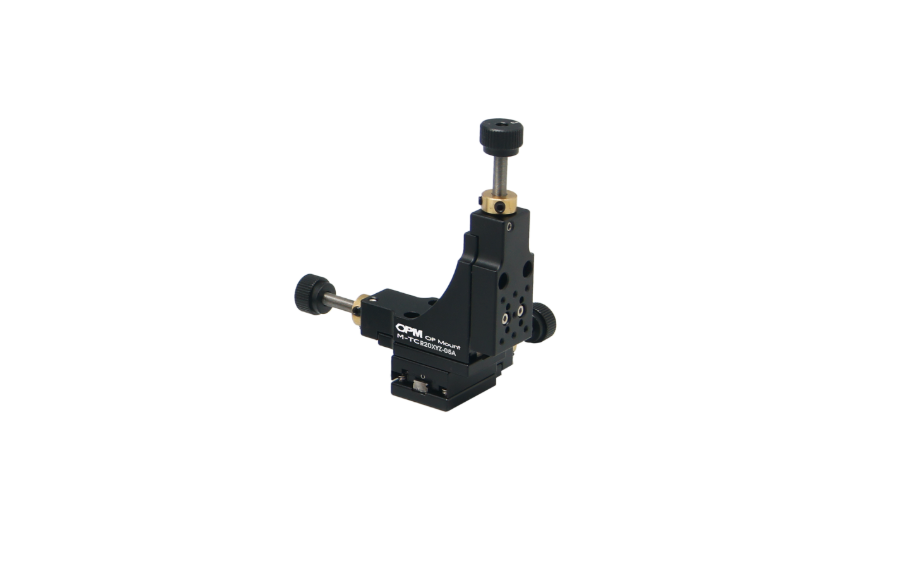

TCR20XYZ-05A – XYZ-stage, 20×20 mm platform, ±6.5 mm travel, adjustment screw (100TPI)

Click image to open expanded view.

TCR20XYZ-05A

725 USD

+ Shipping and import fees, where applicable

725 USD / MIN. QUANTITY PURCHASE

Get it Jan 31 - Feb 7

Miniature center-drive XYZ-stage, 20×20 mm platform, ±6.5 mm travel, 100 TPI screw, crossed-roller guides.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 0,2 kg
Length of handling process:: 7 days
Shipping package includes:: XYZ stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product code (SKU)	Product type	Subtotal	Min. order quantity
1	TCR20XYZ-05A	Platform size 20 mm x 20 mm, adjustment screw (100TPI), axes of travel: XYZ, travel: ±6.5 mm, straightness: ±3 µm, parallelism: ±5 µm, resolution: na	725

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCR20XYZ-05A

Platform size 20 mm x 20 mm, adjustment screw (100TPI), axes of travel: XYZ, travel: ±6.5 mm, straightness: ±3 µm, parallelism: ±5 µm, resolution: na

725 USD
