TSS60XY series – Cross-roller XY-stage 60×60 mm platform, ±6.5 mm travel per axis

Click image to open expanded view.

TSS60XY-05

435 USD

+ Shipping and import fees, where applicable

435 USD / MIN. QUANTITY PURCHASE

Get it Feb 26 - Mar 5

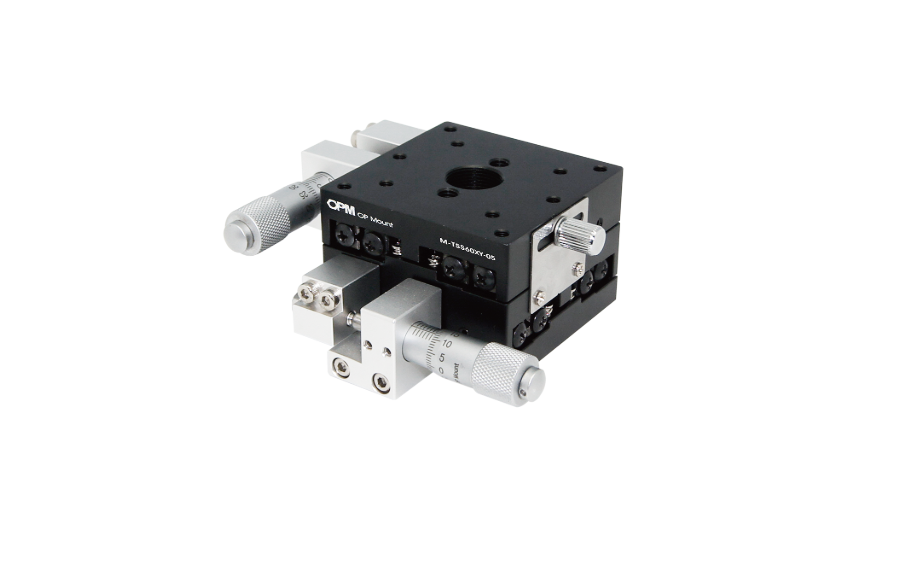

The TSS60XY-05 is a two-axis (XY) crossed-roller translation stage combining two side-drive X and Y axes, each with ±6.5 mm travel and 10 µm micrometer drive. It is suited for compact XY positioning in micro-optics, nanopositioning, and inspection systems requiring small ranges and high rigidity.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 0,6 kg
Length of handling process:: 7 days
Shipping package includes:: XY stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product code (SKU)	Product type	Subtotal	Quantity
1	TSS60XY-05	Platform size 60 mm x 60 mm, actuators: micrometer, axes of travel: X, travel: ±6.5 mm, straightness: ±7.5 µm, resolution: 10 µm	435 USD

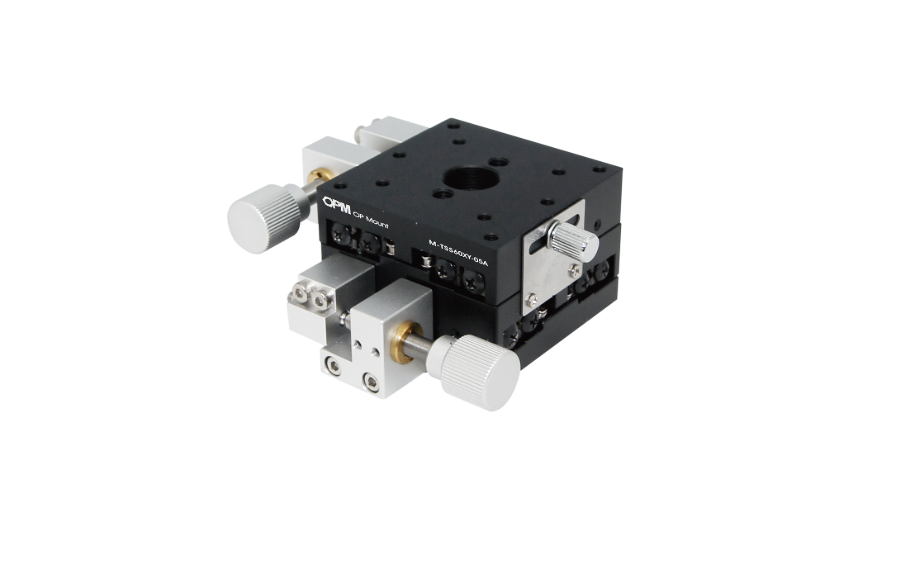

2	TSS60XY-05A	Platform size 60 mm x 60 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±6.5 mm, straightness: ±7.5 µm, resolution: na	405 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TSS60XY-05

Platform size 60 mm x 60 mm, actuators: micrometer, axes of travel: X, travel: ±6.5 mm, straightness: ±7.5 µm, resolution: 10 µm

435 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TSS60XY-05A

Platform size 60 mm x 60 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±6.5 mm, straightness: ±7.5 µm, resolution: na

405 USD
