TCB25X-03 – Miniature linear X-stage, 25×25 mm platform, ±6.5 mm travel

Click image to open expanded view.

TCB25X-03

170 USD

+ Shipping and import fees, where applicable

170 USD / MIN. QUANTITY PURCHASE

Get it Jan 31 - Feb 7

Ultra-compact 25×25 mm X-stage, 0.5″ (±6.5 mm) travel, crossed-roller bearings..

Applications: optical alignment, beam steering.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 0,1 kg
Length of handling process:: 7 days
Shipping package includes:: Single-axis X stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product code (SKU)	Product type	Subtotal	Min. order quantity

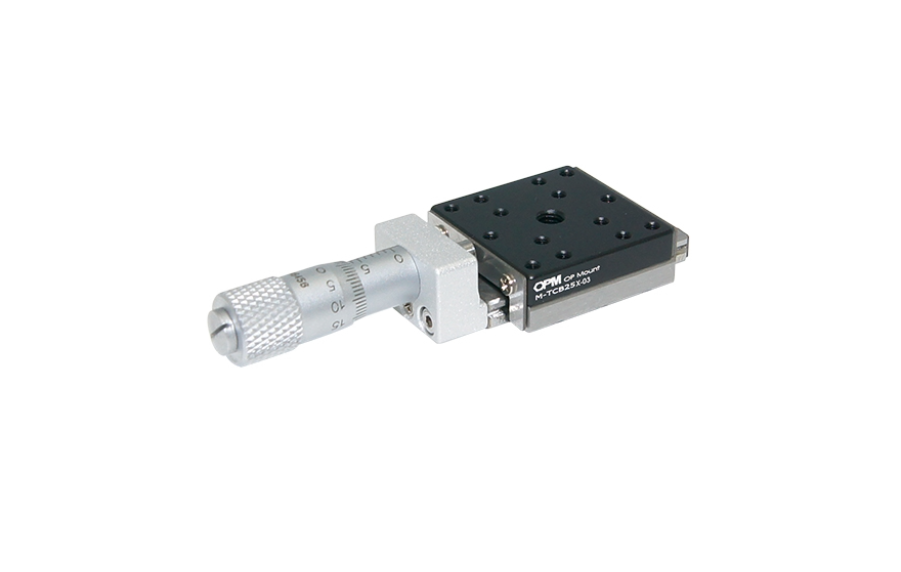

1	TCB25X-03	Platform size 25 mm x 25 mm, actuators: micrometer, axes of travel: X, travel: ± 3.5 mm, straightness: ± 15 mm, resolution: 10 µm, load weigh: 0.1 kg	170

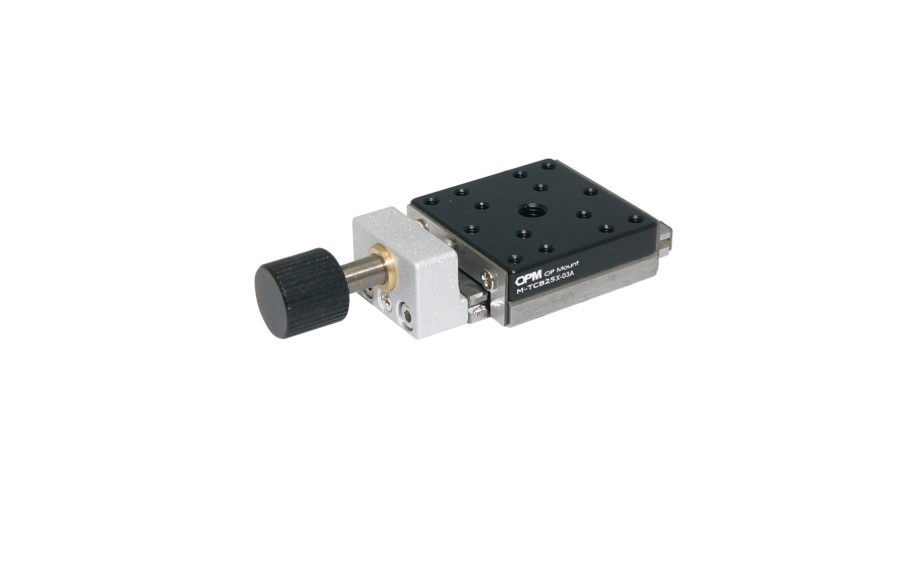

2	TCB25X-03A	Platform size 25 mm x 25 mm, actuators: adjustment screw (100TPI), axes of travel: X, travel: ± 3.5 mm, straightness: ± 15 mm, resolution: NA, load weigh: 0.1 kg	160

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCB25X-03

Platform size 25 mm x 25 mm, actuators: micrometer, axes of travel: X, travel: ± 3.5 mm, straightness: ± 15 mm, resolution: 10 µm, load weigh: 0.1 kg

170 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCB25X-03A

Platform size 25 mm x 25 mm, actuators: adjustment screw (100TPI), axes of travel: X, travel: ± 3.5 mm, straightness: ± 15 mm, resolution: NA, load weigh: 0.1 kg

160 USD
