TSS60X-series – Cross-roller X-stage 60×60 mm platform, ±6.5 mm travel

Click image to open expanded view.

TSS60X-05

235 USD

+ Shipping and import fees, where applicable

235 USD / MIN. QUANTITY PURCHASE

Get it Mar 14 - Mar 21

The TSS60-series is a high-precision cross-roller linear translation stage with a 60 × 60 mm platform and ±6.5 mm travel (13 mm total). It uses side (lateral) drive via a 10 µm-resolution micrometer. Its crossed-roller guide design affords high rigidity, low friction, and a straightness tolerance of ±7.5 µm. Ideal for small-scale precision positioning, optical alignment, micro-motion in compact systems.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 0,3 kg
Length of handling process:: 7 days
Shipping package includes:: X stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product code (SKU)	Product type	Subtotal	Quantity

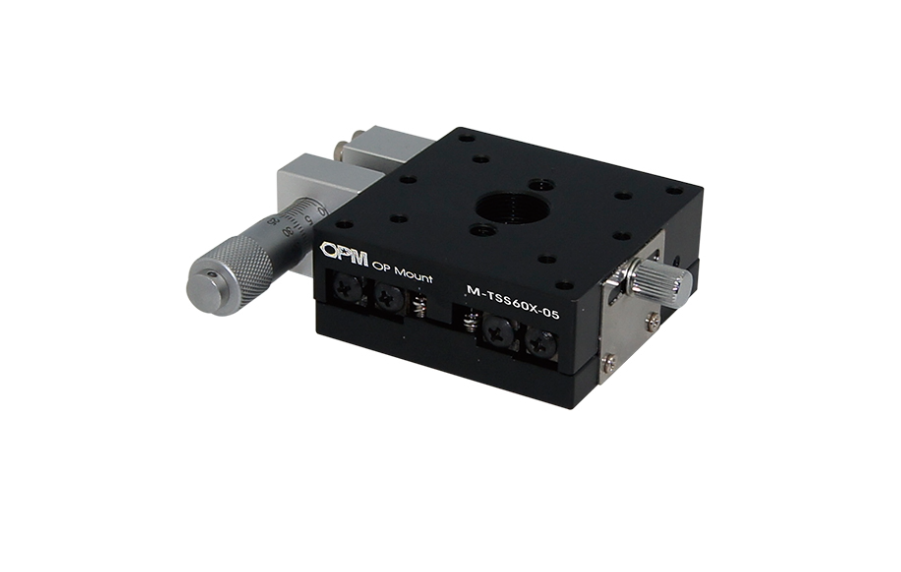

1	TSS60X-05	Platform size 60 mm x 60 mm, actuators: micrometer, axes of travel: X, travel: ±6.5 mm, straightness: ±7.5 µm, resolution: 10 µm	235 USD

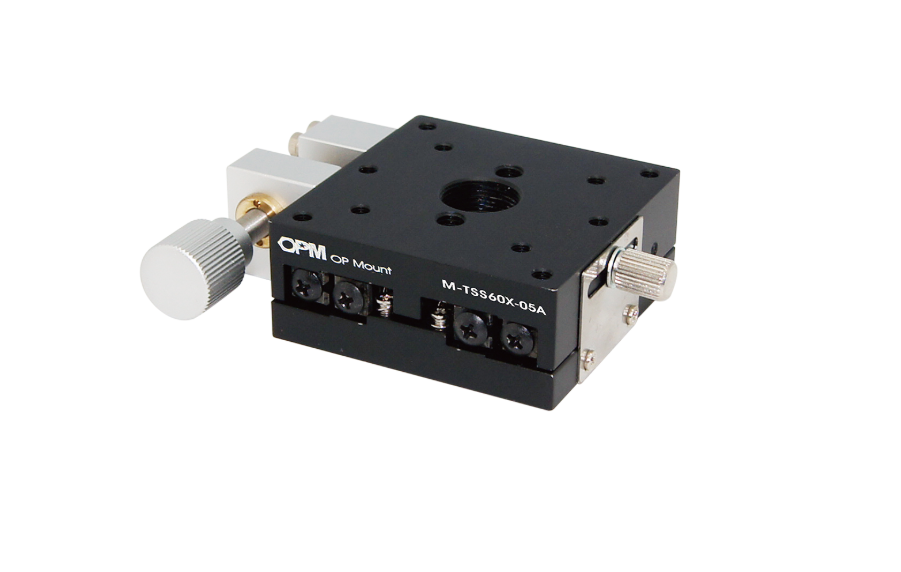

2	TSS60X-05A	Platform size 60 mm x 60 mm, actuators: 100TPI screw, axes of travel: X, travel: ±6.5 mm, straightness: ±7.5 µm, resolution: na	225 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TSS60X-05

Platform size 60 mm x 60 mm, actuators: micrometer, axes of travel: X, travel: ±6.5 mm, straightness: ±7.5 µm, resolution: 10 µm

235 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TSS60X-05A

Platform size 60 mm x 60 mm, actuators: 100TPI screw, axes of travel: X, travel: ±6.5 mm, straightness: ±7.5 µm, resolution: na

225 USD
