TCS120XY – 2-axis translation stage with a 120 × 120 mm platform and ±25 mm travel

Click image to open expanded view.

TCS120XY

865 USD

+ Shipping and import fees, where applicable

865 USD / MIN. QUANTITY PURCHASE

Get it Feb 26 - Mar 5

The TCS120XY is a 2-axis crossed-roller translation stage combining two TCS120X units in a stacked XY configuration. Each axis provides ±25 mm travel with 10 µm micrometer resolution and ±10 µm straightness. Crossed-roller bearings deliver smooth, backlash-free motion. Designed for precision alignment and multi-axis positioning in optics, photonics, and research systems.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 2 kg
Length of handling process:: 7 days
Shipping package includes:: XY stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product code (SKU)	Product type	Subtotal

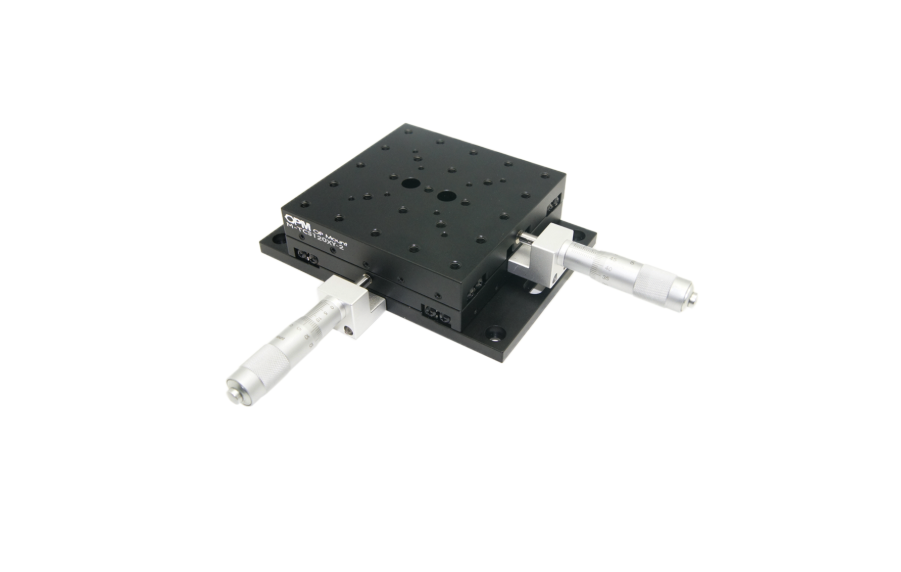

1	TCS120XY-2	Platform size 120 mm x 120 mm, actuators: micrometer, axes of travel: X and Y, travel: ±25 mm, straightness: ±10 µm, resolution: 10 µm	865 USD

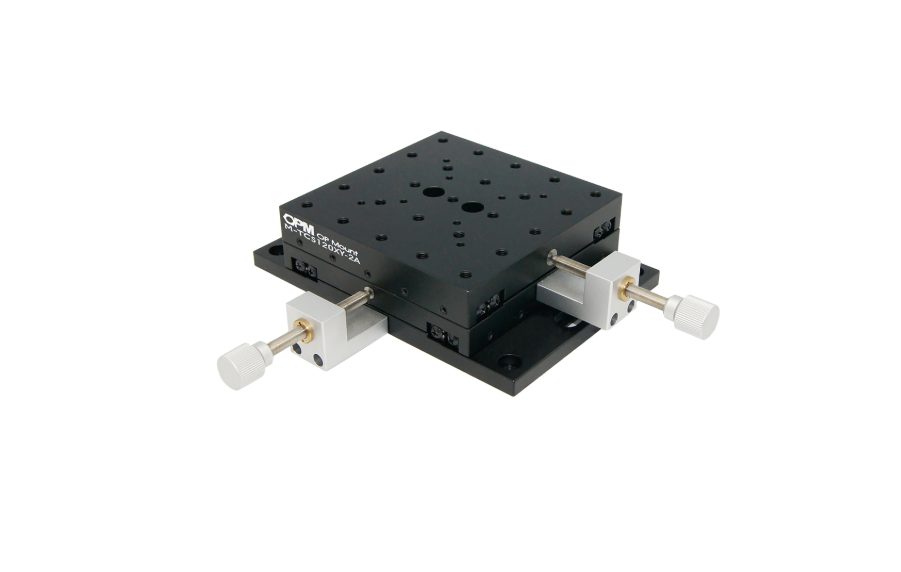

2	TCS120XY-2A	Platform size 120 mm x 120 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±25 mm, straightness: ±10 µm, resolution: na	795 USD

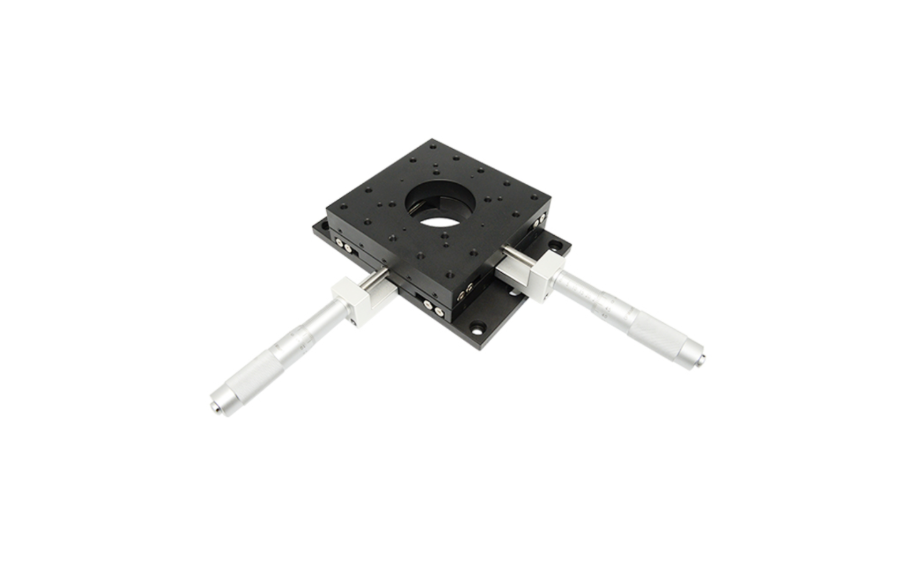

3	TCS120HXY-2	Platform size 120 mm x 120 mm, actuators: micrometer, axes of travel: X and Y, travel: ±25 mm, straightness: ±10 µm, resolution: ±10 µm, aperture	865 USD

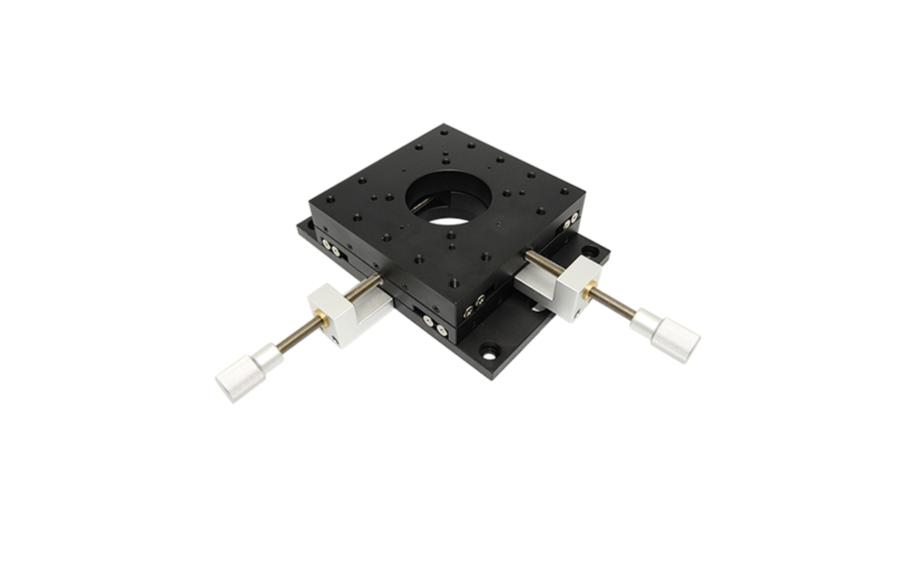

4	TCS120HXY-2A	Platform size 120 mm x 120 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±25 mm, straightness: ±10 µm, resolution: na, aperture	795 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCS120XY-2

Platform size 120 mm x 120 mm, actuators: micrometer, axes of travel: X and Y, travel: ±25 mm, straightness: ±10 µm, resolution: 10 µm

865 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCS120XY-2A

Platform size 120 mm x 120 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±25 mm, straightness: ±10 µm, resolution: na

795 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCS120HXY-2

Platform size 120 mm x 120 mm, actuators: micrometer, axes of travel: X and Y, travel: ±25 mm, straightness: ±10 µm, resolution: ±10 µm, aperture

865 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCS120HXY-2A

Platform size 120 mm x 120 mm, actuators: 100TPI screw, axes of travel: X and Y, travel: ±25 mm, straightness: ±10 µm, resolution: na, aperture

795 USD
