TCS120 series – 1-axis translation stage with a 120 × 120 mm platform and ±25 mm travel

Click image to open expanded view.

TCS120

435 USD

+ Shipping and import fees, where applicable

435 USD / MIN. QUANTITY PURCHASE

Get it Mar 14 - Mar 21

The TCS120 is a precision 1-axis crossed-roller linear translation stage with a 120 × 120 mm platform and ±25 mm travel. It features a high-rigidity crossed-roller guide, central drive design and 10 µm-resolution micrometer for smooth, low-friction positioning. Anodised aluminum construction ensures stability and corrosion resistance. Ideal for optical alignment, micro-measurement, and precision instrumentation.

Download specification sheet

Min. order quantity:: 1
Manufacturer:: OP Mount Instrument Inc.
Dimensions per unit:: 8 cm × 12 cm × 7 cm
Weight per unit:: 1,2 kg
Length of handling process:: 7 days
Shipping package includes:: X stage and documentation
Condition:: New
END-USE CERTIFICATION NEEDED:: No

Product configurations & prices

Item	Product code (SKU)	Product type	Subtotal

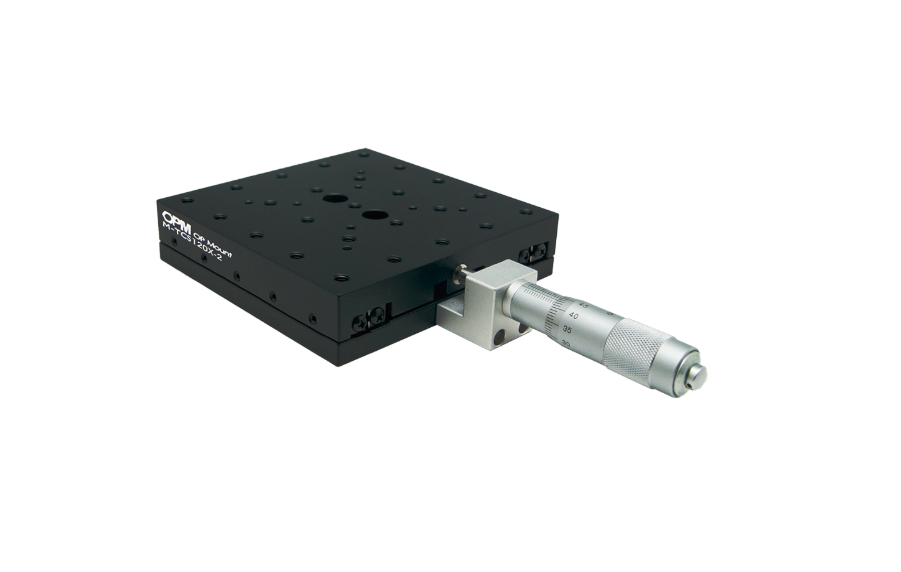

1	TCS120X-2	Platform size 120 mm x 120 mm, actuators: micrometer, axes of travel: X, travel: ±25 mm, straightness: ±10 µm, resolution: 10 µm	435 USD
2	TCS120X-2A	Platform size 120 mm x 120 mm, actuators: 100TPI screw, axes of travel: X, travel: ±25 mm, straightness: ±10 µm, resolution: na	400 USD

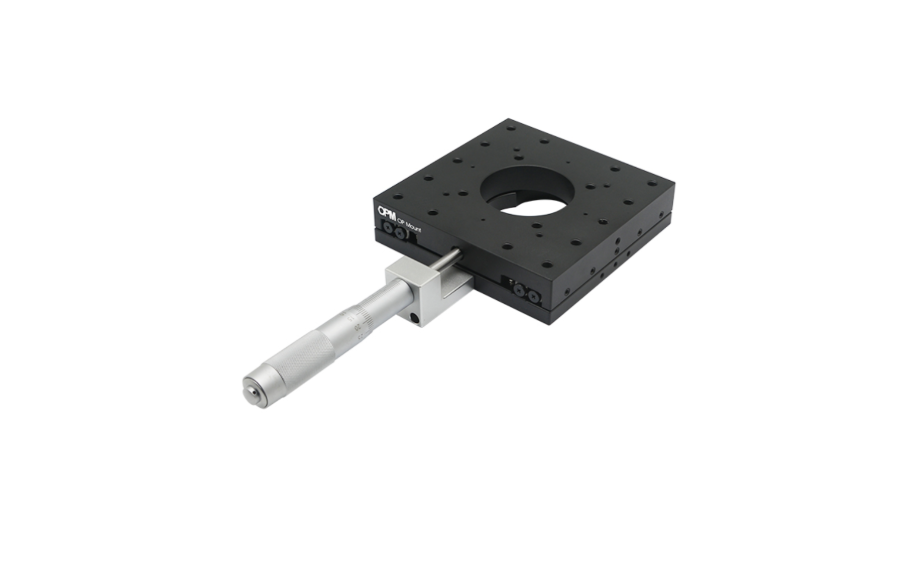

3	TCS120HX-2	Platform size 120 mm x 120 mm, actuators: micrometer, axes of travel: X, travel: ±25 mm, straightness: ±10 µm, resolution: ±10 µm,, central aperture	400 USD

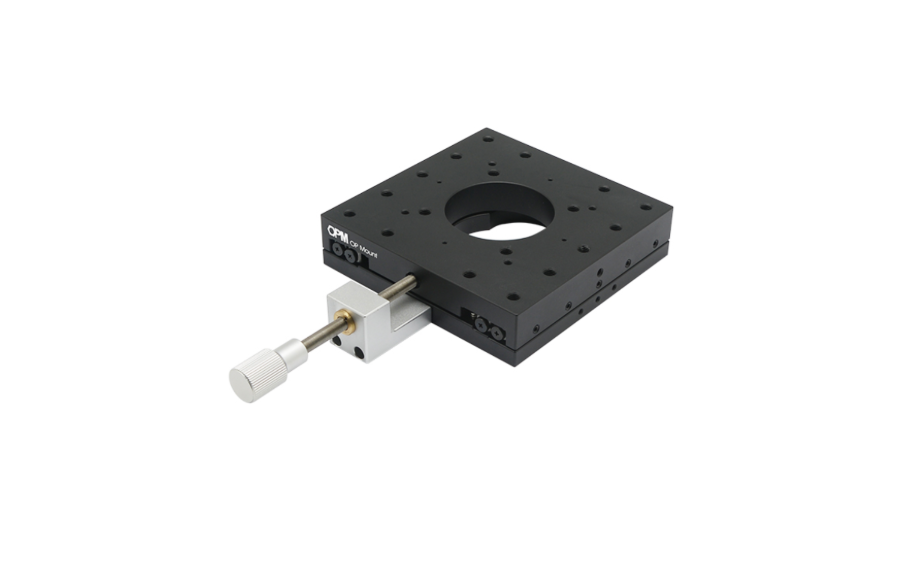

4	TCS120HX-2A	Platform size 120 mm x 120 mm, actuators: 100TPI screw, axes of travel: X, travel: ±25 mm, straightness: ±10 µm, resolution: na, central aperture	400 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCS120X-2

Platform size 120 mm x 120 mm, actuators: micrometer, axes of travel: X, travel: ±25 mm, straightness: ±10 µm, resolution: 10 µm

435 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCS120X-2A

Platform size 120 mm x 120 mm, actuators: 100TPI screw, axes of travel: X, travel: ±25 mm, straightness: ±10 µm, resolution: na

400 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCS120HX-2

Platform size 120 mm x 120 mm, actuators: micrometer, axes of travel: X, travel: ±25 mm, straightness: ±10 µm, resolution: ±10 µm,, central aperture

400 USD

Item:

Product code (SKU):

Product type:

Net sum:

Quantity:

TCS120HX-2A

Platform size 120 mm x 120 mm, actuators: 100TPI screw, axes of travel: X, travel: ±25 mm, straightness: ±10 µm, resolution: na, central aperture

400 USD
